What are S3 Annotations?

Traditional pattern: image in S3, metadata in a database or sidecar index. S3 Annotations attach structured metadata directly to the object. Official AWS docs and launch posts are on External links.

Tip

Demo repo. Commands and file paths refer to terraform-aws-s3-annotations-demo — not this documentation site. Examples use the Te Kaha camera (TKAH.01).

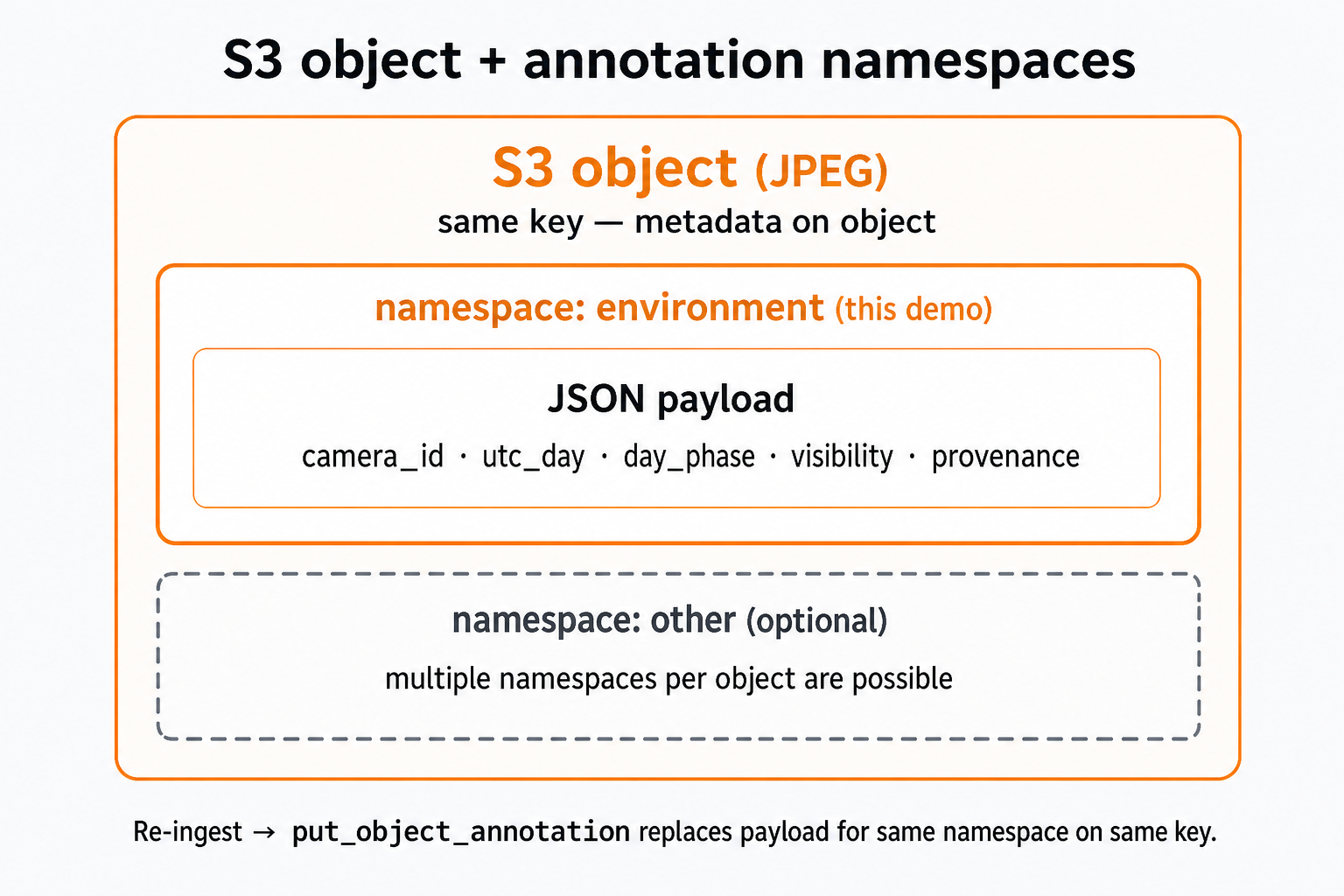

S3 object (JPEG)
    └── annotation namespace "environment"
            └── JSON payload (camera, time, filters, provenance)

Why this matters for the demo

Idea	How the demo shows it
Metadata travels with the object	Annotations are written on the same key as the JPEG
No extra DB required (default)	API reads GetObjectAnnotation per object
Filterable in apps	Gallery filters on annotation fields — in application code, not via a native S3 query
Provenance	source_bucket, source_key, ingest_run_id on every object

S3 Annotations in practice

No server-side query

S3 Annotations do not support “find all objects where day_phase=dusk.” There is no annotation search API across a bucket.

This demo instead:

1. Lists object keys in the private bucket (ListObjectsV2)
2. Calls GetObjectAnnotation per key (parallel in the API Lambda)
3. Filters in Lambda on the parsed JSON, then paginates

Tradeoff	Detail
Benefit	Metadata travels with the object; no sidecar file or separate metadata DB required
Cost	Query and filter are application work — roughly N objects → N annotation reads per gallery/API request
Scale pattern	Optional DynamoDB mirror (enable_dynamodb) acts as a denormalized index; S3 remains canonical

Say plainly: annotations colocate metadata; they do not replace a query engine.

Annotations vs other S3 metadata

Approach	What it is	Why this demo uses annotations instead
S3 object tags	Up to 10 key/value pairs per object; string values; tag-based filtering APIs	Too small for structured JSON; not ideal for rich provenance + filter fields
User metadata (PutObject headers)	Key/value headers set at upload time	Awkward to update after copy; not the structured annotation workflow
Sidecar files	image.jpg + image.json as separate keys	Metadata can drift from the image; lifecycle and permissions are harder to keep aligned
S3 Annotations	Named namespace + payload blob on the same object	JSON metadata versioned with the asset; put_object_annotation / get_object_annotation API

Namespaces

Caution

AWS CLI ≥ 2.35.6 — list-object-annotations and get-object-annotation are new in CLI v2. Older installs fail with an unknown operation. Run aws --version before the examples below.

Caution

boto3 ≥ 1.43.32 — ingest and API Lambdas use put_object_annotation / get_object_annotation. Older boto3 builds do not include the S3 Annotations API.

To see which namespaces exist on an object, from the demo repository root:

BUCKET="volcano-annotations-demo-private"
KEY="camera/volcano/images/2026/TKAH/TKAH.01/2026.170/2026.170.0000.00.TKAH.01.jpg"

aws s3api list-object-annotations \
  --bucket "$BUCKET" \
  --key "$KEY"

Sample output (Te Kaha image 2026.170.0000.00.TKAH.01.jpg after ingest):

{
  "Annotations": [
    {
      "AnnotationName": "environment",
      "LastModified": "2026-06-19T20:16:21+00:00",
      "ETag": "\"2ee3e9a5700bfd2e2307f6d1202e5755\"",
      "ChecksumAlgorithm": ["CRC32"],
      "Size": 480
    }
  ],
  "AnnotationCount": 1,
  "Bucket": "volcano-annotations-demo-private",
  "Key": "camera/volcano/images/2026/TKAH/TKAH.01/2026.170/2026.170.0000.00.TKAH.01.jpg"
}

The demo uses a single namespace — environment — with a JSON payload (480 bytes). Use get-object-annotation (below) to read the payload itself.

API surface (demo vs full feature)

Helpers: lambda/shared/s3_annotations.py wraps the boto3 annotation calls.

S3 API	In this demo?	In walkthrough / code
PutObjectAnnotation	Yes	Ingest Lambda — put_object_annotation()
GetObjectAnnotation	Yes	API Lambda — get_object_annotation()
ListObjectAnnotations	No	CLI example above; alternative to assuming every key has environment
DeleteObjectAnnotation	No	Not needed; terraform destroy removes objects + annotations

IAM permissions

Annotation access is explicit IAM on the private bucket (terraform/iam.tf):

Role	Actions	Purpose
Ingest Lambda	s3:PutObject, s3:PutObjectAnnotation, s3:ListBucket	Copy JPEG, write annotation
API Lambda	s3:GetObject, s3:GetObjectAnnotation, s3:ListBucket	Read annotation, presign image

Note

Reading or writing annotations requires s3:GetObjectAnnotation / s3:PutObjectAnnotation — object permissions alone are not enough.

Platform limitations

Do not assume annotations work everywhere S3 does. AWS documents cases where annotations are not supported, including:

• S3 Inventory Reports
• S3 Storage Lens
• S3 File Gateway
• Amazon FSx
• S3 on Outposts
• S3 Express One Zone (directory buckets)

Note

This demo uses API Gateway to invoke Lambda; Lambda reads annotations via the S3 API. API Gateway does not expose S3 Annotations directly — your app code (here, the API Lambda) calls S3.

Core API surface

Operation	Function	Used by
Write	put_object_annotation()	Ingest Lambda
Read	get_object_annotation()	API Lambda

Namespace: environment (set via ANNOTATION_NAMESPACE on ingest).

Inspect an annotation

After ingest, pick any object key from the private bucket. Run from the demo repository root (clone terraform-aws-s3-annotations-demo — the directory that contains terraform/):

BUCKET=$(terraform -chdir=terraform output -raw private_bucket_name)
KEY="camera/volcano/images/2026/TKAH/TKAH.01/2026.170/2026.170.0800.00.TKAH.01.jpg"

# CLI writes the annotation payload to a file (streaming blob); metadata prints to stdout.
PAYLOAD=$(mktemp)
aws s3api get-object-annotation \
  --bucket "$BUCKET" \
  --key "$KEY" \
  --annotation-name environment \
  "$PAYLOAD" >/dev/null

python3 -m json.tool "$PAYLOAD"
rm -f "$PAYLOAD"

Sample output (Te Kaha image 2026.170.0800.00.TKAH.01.jpg after ingest):

{
  "schema_version": "1",
  "camera_id": "TKAH.01",
  "volcano_site": "TKAH",
  "utc_day": "2026.170",
  "captured_utc": "2026-06-19T08:00:00Z",
  "day_phase": "dusk",
  "visibility": "daylight",
  "model": "metadata-luminance-v1",
  "source_bucket": "geonet-open-data",
  "source_key": "camera/volcano/images/2026/TKAH/TKAH.01/2026.170/2026.170.0800.00.TKAH.01.jpg",
  "ingest_run_id": "49f52ccc-2b61-4e1b-91c0-04440e479686",
  "ingested_at": "2026-06-19T08:57:20Z",
  "updated_at": "2026-06-19T08:57:20Z"
}

In the S3 console: open the object → Annotations tab → namespace environment.
