Kueue on EKS

Kueue via GitOps

Kueue is not an EKS add-on. Deploy it like KEDA: an Argo CD Application pointing at the upstream Helm chart.

Work from demo/:

Terminal window
cd "$LAB_DIR"

Set variables

Section titled “Set variables”
Terminal window
export KUEUE_CHART_VERSION=0.19.1
export KUEUE_APP_NAME=kueue
export CLUSTER_ARN=$(aws eks describe-cluster \
  --name "$CLUSTER_NAME" \
  --region "$AWS_REGION" \
  --query 'cluster.arn' \
  --output text)
export ARGOCD_ROLE_ARN="arn:aws:iam::$(aws sts get-caller-identity --query Account --output text):role/${ARGOCD_ROLE_NAME:-ArgoCDCapabilityRole}"


echo "CLUSTER_ARN=$CLUSTER_ARN"

Register this cluster for Argo CD

Section titled “Register this cluster for Argo CD”

Managed Argo CD does not use https://kubernetes.default.svc. Register the local EKS cluster by ARN, then grant the capability role cluster permissions to sync workloads:

Terminal window
mkdir -p examples/argocd


cat > examples/argocd/in-cluster-secret.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: in-cluster
  namespace: argocd
  labels:
    argocd.argoproj.io/secret-type: cluster
stringData:
  name: in-cluster
  server: ${CLUSTER_ARN}
  project: default
EOF


kubectl apply -f examples/argocd/in-cluster-secret.yaml


aws eks associate-access-policy \
  --cluster-name "$CLUSTER_NAME" \
  --principal-arn "$ARGOCD_ROLE_ARN" \
  --policy-arn arn:aws:eks::aws:cluster-access-policy/AmazonEKSClusterAdminPolicy \
  --access-scope type=cluster

See Register target clusters.

Deploy with Argo CD

Section titled “Deploy with Argo CD”

Create the Application manifest under demo/, then apply it. Destination server must be the EKS cluster ARN:

Terminal window
cat > examples/argocd/kueue-application.yaml <<EOF
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: ${KUEUE_APP_NAME}
  namespace: argocd
spec:
  project: default
  source:
    repoURL: oci://registry.k8s.io/kueue/charts/kueue
    chart: kueue
    targetRevision: ${KUEUE_CHART_VERSION}
    helm:
      releaseName: kueue
      values: |
        enableKueueViz: true
        controllerManager:
          nodeSelector:
            karpenter.sh/nodepool: system
          tolerations:
            - key: CriticalAddonsOnly
              operator: Exists
        kueueViz:
          backend:
            nodeSelector:
              karpenter.sh/nodepool: system
            tolerations:
              - key: CriticalAddonsOnly
                operator: Exists
            env:
              - name: KUEUEVIZ_ALLOWED_ORIGINS
                value: "http://localhost:8080,http://127.0.0.1:8080"
            ingress:
              # disabled — lab uses port-forward; host still drives frontend WebSocket URL
              enabled: false
              host: localhost:8081
              tlsEnabled: false
              tlsSecretName: ""
          frontend:
            nodeSelector:
              karpenter.sh/nodepool: system
            tolerations:
              - key: CriticalAddonsOnly
                operator: Exists
            ingress:
              enabled: false
  destination:
    server: ${CLUSTER_ARN}
    namespace: kueue-system
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true
      - ServerSideApply=true
EOF


kubectl apply -f examples/argocd/kueue-application.yaml
kubectl get application -n argocd "$KUEUE_APP_NAME"

KUEUE_CHART_VERSION=0.19.1 is the chart version used in this walkthrough as of this writing — newer Kueue chart releases may exist; bump the export if you intentionally track a later release.

enableKueueViz: true installs the optional KueueViz dashboard with the controller. Configure WebSocket/CORS in these Helm values (not with later kubectl patch / set env — Argo CD selfHeal owns the rendered ConfigMap and Deployment):

  • Ingress off (enabled: false) — lab uses port-forward on KueueViz dashboard
  • kueueViz.backend.ingress.host: localhost:8081 and tlsEnabled: false — the chart still uses that host to write ws://localhost:8081 into the frontend ConfigMap
  • KUEUEVIZ_ALLOWED_ORIGINS: http://localhost:8080,http://127.0.0.1:8080 — CORS for the browser origin (both forms)

nodeSelector / tolerations sit under controllerManager and kueueViz.* so pods land on the Auto Mode system node pool:

enableKueueViz: true
controllerManager:
  nodeSelector:
    karpenter.sh/nodepool: system
  tolerations:
    - key: CriticalAddonsOnly
      operator: Exists
kueueViz:
  backend:
    nodeSelector:
      karpenter.sh/nodepool: system
    tolerations:
      - key: CriticalAddonsOnly
        operator: Exists
    env:
      - name: KUEUEVIZ_ALLOWED_ORIGINS
        value: "http://localhost:8080,http://127.0.0.1:8080"
    ingress:
      # disabled — lab uses port-forward; host still drives frontend WebSocket URL
      enabled: false
      host: localhost:8081
      tlsEnabled: false
      tlsSecretName: ""
  frontend:
    nodeSelector:
      karpenter.sh/nodepool: system
    tolerations:
      - key: CriticalAddonsOnly
        operator: Exists
    ingress:
      enabled: false

What you see while it starts

Section titled “What you see while it starts”

Sync is usually quick (Synced), but health often stays Progressing for a few minutes. That is normal: Auto Mode may still be adding a node, and the controller readiness probe returns 404 until the manager wins leader election.

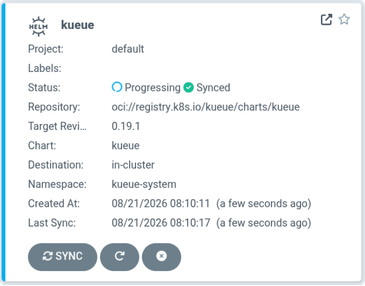

Right after apply — Synced + Progressing:

Argo CD kueue Application Synced and Progressing

While Progressing, pod events commonly show readiness failures:

Warning  Unhealthy  ...  Readiness probe failed: HTTP probe failed with statuscode: 404

Check yourself:

Terminal window
kubectl get events -n kueue-system --field-selector reason=Unhealthy --sort-by='.lastTimestamp' | tail
kubectl logs -n kueue-system deploy/kueue-controller-manager --tail=50 | grep -E 'became leader|transitioned to leader'

Example log lines once leadership is acquired (readyz then succeeds):

..."msg":"... became leader"... "reason":"LeaderElection"
..."msg":"RoleTracker: transitioned to leader"

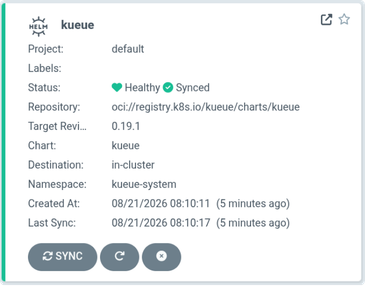

When the controller is up, the same card shows Healthy + Synced:

Argo CD kueue Application Healthy and Synced

Do not tear down on the temporary readiness 404s — wait for Healthy (or use kubectl wait below).

Verify controller

Section titled “Verify controller”
Terminal window
kubectl wait deploy/kueue-controller-manager -n kueue-system \
  --for=condition=available --timeout=10m


kubectl wait deploy/kueue-kueueviz-backend deploy/kueue-kueueviz-frontend \
  -n kueue-system --for=condition=available --timeout=10m


kubectl get pods -n kueue-system -o wide
kubectl get application -n argocd "$KUEUE_APP_NAME"

Expect the Application Healthy / Synced, the manager pod 1/1 Running, and KueueViz backend/frontend pods Running (you open the UI after queues exist).

Next: Queues and flavors.
