Verify batch admission

Work from demo/:

cd "$LAB_DIR"

Note

Bursts target tenant namespaces (project-a / b / c) and their LocalQueues — not Argo CD Projects or Applications.

Prerequisites for this page

• Queues, NodePool batch, and examples/workloads/sample-jobs.yaml from Queues and flavors
• Optional but useful: KueueViz open at http://localhost:8080 while you burst
• A sample-job still present in each namespace you will burst (Complete is fine — the script clones the Job spec)
• jq on your PATH (used to build clean Job manifests)

jq --version
kubectl get job sample-job -n project-a
kubectl get job sample-job -n project-b
kubectl get job sample-job -n project-c

If a sample Job is missing, re-apply:

kubectl apply -f examples/workloads/sample-jobs.yaml

Confirm the three sample Workloads finished

Optional — if you just finished the previous page, samples may already be Complete / FINISHED=True:

kubectl get workloads -A
kubectl get localqueue -A

Finished samples release Spot quota. If samples are still Running when you burst, they count toward the 10 CPU cap (you may see fewer than 10 new admits until they finish).

Burst test (quota cap)

Create a helper that clones each namespace’s own sample-job into many burst Jobs. It uses jq (not raw sed on live Job YAML) so controller UIDs and selectors are not copied — those break apply.

Burst Jobs sleep 180s by default so quota stays reserved long enough to inspect Queued Workloads (SLEEP_SECONDS overrides).

mkdir -p examples/workloads

cat > examples/workloads/burst-jobs.sh <<'EOF'
#!/usr/bin/env bash
set -euo pipefail

NAMESPACE="${1:-project-a}"
COUNT="${2:-20}"
QUEUE="${3:-$NAMESPACE}"
SLEEP_SECONDS="${SLEEP_SECONDS:-180}"

if ! kubectl get job sample-job -n "$NAMESPACE" >/dev/null 2>&1; then
  echo "Missing sample-job in ${NAMESPACE}. Apply examples/workloads/sample-jobs.yaml first." >&2
  exit 1
fi

tmpdir=$(mktemp -d)
trap 'rm -rf "$tmpdir"' EXIT

for i in $(seq 1 "$COUNT"); do
  kubectl get job sample-job -n "$NAMESPACE" -o json |
    jq --arg name "burst-${i}" --arg queue "$QUEUE" --argjson sleep "$SLEEP_SECONDS" '
      {
        apiVersion: .apiVersion,
        kind: .kind,
        metadata: {
          name: $name,
          namespace: .metadata.namespace,
          labels: {
            "kueue.x-k8s.io/queue-name": $queue
          }
        },
        spec: {
          parallelism: .spec.parallelism,
          completions: .spec.completions,
          backoffLimit: (.spec.backoffLimit // 6),
          template: {
            spec: (
              .spec.template.spec
              | .restartPolicy = "Never"
              | .containers[0].command = ["/bin/sh", "-c", ("sleep " + ($sleep | tostring))]
              | del(.nodeName)
            )
          }
        }
      }
    ' > "${tmpdir}/burst-${i}.json"
done

kubectl apply -f "$tmpdir"
echo "Submitted ${COUNT} jobs to namespace ${NAMESPACE} (queue ${QUEUE}, sleep ${SLEEP_SECONDS}s)"
echo "Watch: kubectl get workloads -A; kubectl get localqueue -A"
EOF

chmod +x examples/workloads/burst-jobs.sh
./examples/workloads/burst-jobs.sh project-a 30

Inspect immediately:

kubectl get localqueue -A
kubectl get clusterqueue shared-batch
kubectl get workloads -n project-a
kubectl get pods -n project-a
kubectl get nodes -L karpenter.sh/capacity-type,karpenter.sh/nodepool

If KueueViz is open, watch Admitted vs waiting Workloads update while these commands show the quota numbers.

What you should see

With SPOT_CPU_QUOTA=10 and 1 CPU per Job, a 30-Job burst into project-a (and no other active admits) yields roughly:

NAMESPACE   NAME        CLUSTERQUEUE   PENDING WORKLOADS   ADMITTED WORKLOADS
project-a   project-a   shared-batch   20                  10
project-b   project-b   shared-batch   0                   0
project-c   project-c   shared-batch   0                   0

NAME           COHORT   PENDING WORKLOADS
shared-batch            20

ClusterQueue Spot usage should show 10 CPU reserved (names/ages vary):

Flavors Usage:
  Name: spot
  ...
  cpu Total: 10
  memory Total: 2000Mi

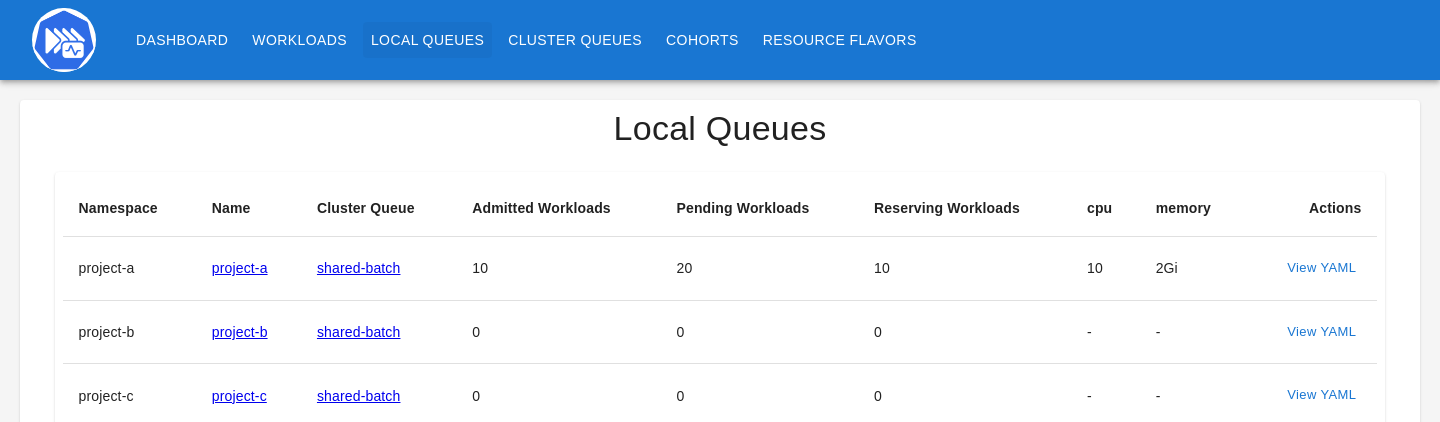

KueueViz Local Queues during that burst (10 admitted / 20 pending on project-a):

Close

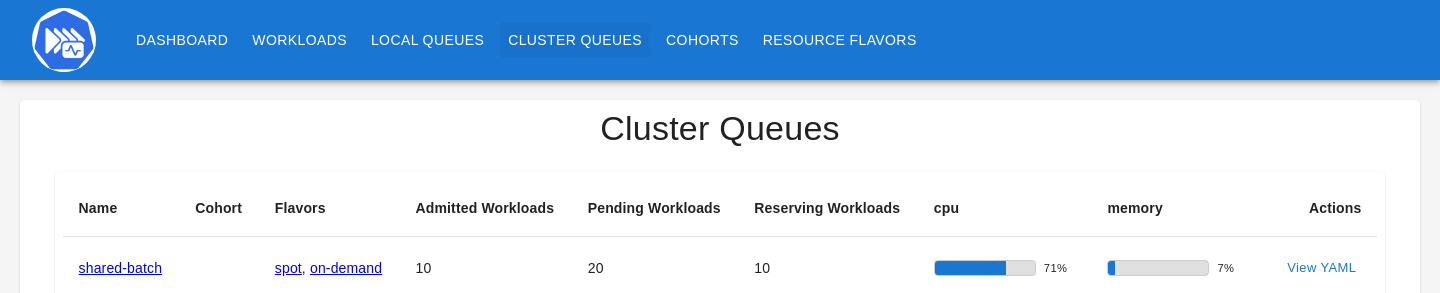

Same story at the ClusterQueue — shared-batch with 10 admitted and 20 pending:

Close

Observation	Meaning
~10 Workloads Admitted (ADMITTED=True, RESERVED IN=shared-batch)	Spot CPU quota cap working
~20 Workloads with empty RESERVED IN / not Admitted	Queued — waiting for Kueue quota, not a broken scheduler
Some Admitted pods Running, others Pending	Quota reserved; Auto Mode / Spot node capacity still catching up (batch NodePool)
Extra Spot nodes appearing (NODEPOOL=batch)	Auto Mode scaling for admitted work

Tip

Queued (Workload) ≠ Pending (Pod). Queued means Kueue has not admitted the Job yet. Pending with Admitted means the Job may run but no node has accepted the pod yet — see Troubleshooting.

Fair share across tenants (shared ClusterQueue)

Delete the previous burst first so quota is free, then submit from each tenant’s own sample-job:

for ns in project-a project-b project-c; do
  jobs=$(kubectl get jobs -n "$ns" -o name | grep burst || true)
  [ -n "$jobs" ] && kubectl delete -n "$ns" $jobs
done

./examples/workloads/burst-jobs.sh project-a 10
./examples/workloads/burst-jobs.sh project-b 10
./examples/workloads/burst-jobs.sh project-c 10

kubectl get localqueue -A
kubectl get workloads -A | head -40

All LocalQueues map to shared-batch with BestEffortFIFO. If you submit project-a first while quota is free, expect something like:

NAMESPACE   NAME        CLUSTERQUEUE   PENDING WORKLOADS   ADMITTED WORKLOADS
project-a   project-a   shared-batch   0                   10
project-b   project-b   shared-batch   10                  0
project-c   project-c   shared-batch   10                  0

KueueViz view of that FIFO outcome:

Close

That is correct for this lab: tenants share one ClusterQueue, not three isolated 10-CPU budgets. When project-a Jobs finish, Kueue admits Workloads from project-b / project-c next. True weighted multi-tenant fairness needs extra Kueue policy (priorities / cohorts) beyond this walkthrough.

Clean up workloads (keep cluster)

kubectl delete jobs -n project-a --all
kubectl delete jobs -n project-b --all
kubectl delete jobs -n project-c --all

Re-apply samples later if you need them again:

kubectl apply -f examples/workloads/sample-jobs.yaml

Next: Teardown when finished with the lab.
