Ingress Configuration

Overview

When you deploy an Express Gateway Service Express Gateway Service
The aws_ecs_express_gateway_service Terraform resource that provisions an ECS service with managed ALB, auto scaling, and simplified configuration for HTTP/HTTPS web applications and APIs. , ECS Express Mode automatically provisions and configures the ingress layer — a Shared ALB Shared ALB
The Application Load Balancer shared by up to 25 Express services in the same VPC using Host header routing rules. with a listener, target group, and Host header routing rules. You do not create these resources in your Terraform code. Instead, Express Mode manages them and exposes their identifiers through the ingress_paths output attribute.

This page explains how Express Mode provisions the public ALB endpoint and documents the ingress_paths output containing the ALB DNS name, listener ARN, and target group ARN from the terraform-aws-ecs-express-mode-demo project.

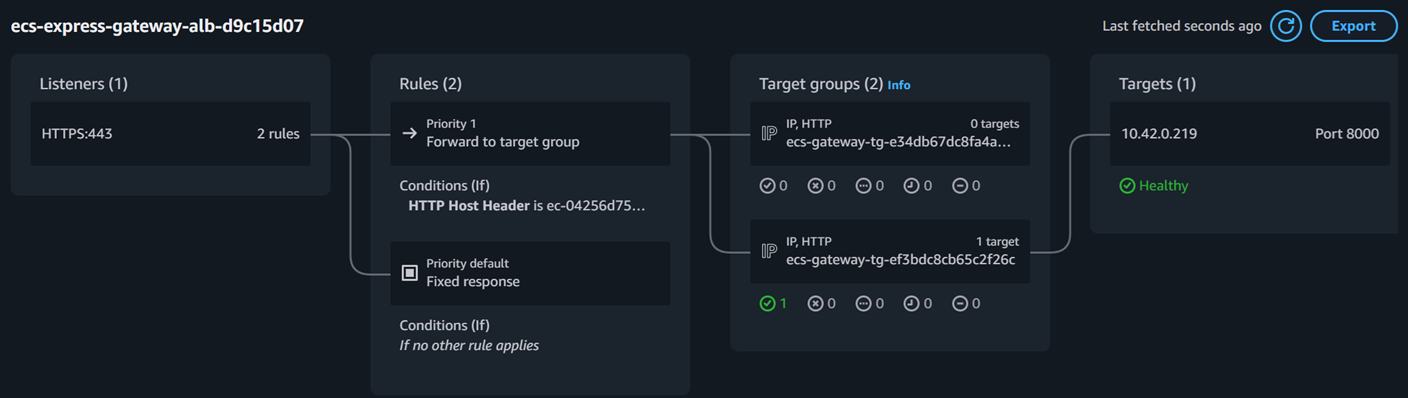

How Express Mode Provisions Ingress

Express Mode handles the full ingress stack automatically when you create an Express Gateway Service Express Gateway Service
The aws_ecs_express_gateway_service Terraform resource that provisions an ECS service with managed ALB, auto scaling, and simplified configuration for HTTP/HTTPS web applications and APIs. . The provisioning sequence:

1. ECS creates or reuses a Shared ALB Shared ALB
   The Application Load Balancer shared by up to 25 Express services in the same VPC using Host header routing rules. in the VPC VPC
   Virtual Private Cloud — an isolated virtual network within AWS where resources are deployed. containing your specified subnets
2. A target group is registered for your service’s container port
3. A listener rule with Host header matching routes traffic to the target group
4. Each service receives a unique Application URL Application URL
   The unique Express-provisioned HTTPS URL on *.ecs.<region>.on.aws used for all normal application traffic. on *.ecs.<region>.on.aws

Note

The ALB is shared across up to 25 Express services in the same VPC. Express Mode uses Host header routing rules to direct traffic to the correct target group for each service. You do not manage listener rules or target group registrations — ECS handles this entirely.

The network configuration in your Express Gateway Service resource determines where the ALB is placed:

main.tf

resource "aws_ecs_express_gateway_service" "this" {
  # ...

  network_configuration {
    subnets          = aws_subnet.public[*].id
    security_groups  = [aws_security_group.web.id]
    access_type      = "PUBLIC"
  }
}

• subnets — the ALB and tasks are both placed in these subnets. Public subnets Public Subnet
  A subnet with a route to an Internet Gateway, enabling resources to have public IP addresses and internet access. produce an internet-facing ALB.
• security_groups — applied to the tasks. The ALB receives its own managed security group automatically.
• access_type — PUBLIC creates an internet-facing ALB; PRIVATE creates an internal ALB reachable only within the VPC.

The ingress_paths Output

After Express Mode provisions the ingress layer, the aws_ecs_express_gateway_service resource exposes an ingress_paths attribute containing the ALB DNS name, listener ARN, and target group ARN. You can surface these values with Terraform outputs:

outputs.tf

output "alb_dns_name" {
  description = "DNS name of the Express-managed ALB"
  value       = aws_ecs_express_gateway_service.this.ingress_paths[0].alb_dns_name
}

output "listener_arn" {
  description = "ARN of the ALB listener managed by Express Mode"
  value       = aws_ecs_express_gateway_service.this.ingress_paths[0].listener_arn
}

output "target_group_arn" {
  description = "ARN of the target group registered for this service"
  value       = aws_ecs_express_gateway_service.this.ingress_paths[0].target_group_arn
}

Tip

The ingress_paths attribute is a list. For a single-service deployment, access index [0] to retrieve the primary ingress path. Each entry contains the ALB DNS name, listener ARN, and target group ARN for that path.

ingress_paths Structure

The ingress_paths output is a list of objects. Each object contains three key fields:

Field	Type	Description	Example Value
alb_dns_name	string	Public DNS name of the Express-managed Shared ALB Shared ALB The Application Load Balancer shared by up to 25 Express services in the same VPC using Host header routing rules.	express-abcdef12.us-east-1.elb.amazonaws.com
listener_arn	string	ARN of the HTTPS listener created on the ALB	arn:aws:elasticloadbalancing:us-east-1:123456789012:listener/app/express/…/…
target_group_arn	string	ARN of the target group registered for this service’s tasks	arn:aws:elasticloadbalancing:us-east-1:123456789012:targetgroup/express-…/…

Caution

The raw ALB DNS name is not the URL you should use for application traffic. Express Mode assigns each service a unique Application URL Application URL
The unique Express-provisioned HTTPS URL on *.ecs.<region>.on.aws used for all normal application traffic. on *.ecs.<region>.on.aws. Use that URL for accessing your application. The ALB DNS name is useful for diagnostics and verifying the underlying infrastructure.

ALB DNS Name vs Application URL

Express Mode exposes two endpoints, each serving a different purpose:

Endpoint	Source	Purpose	Use For
ALB DNS name	ingress_paths[0].alb_dns_name	Raw load balancer hostname	Infrastructure diagnostics, verifying ALB health
Application URL Application URL The unique Express-provisioned HTTPS URL on *.ecs.<region>.on.aws used for all normal application traffic.	ECS console / application_url attribute	Express-managed HTTPS endpoint with Host header routing	All application traffic, curl tests, browser access

Why Ingress Configuration Matters for Express Mode

Understanding the ingress layer helps you adapt Express Mode to your environment:

• Diagnostics — the target_group_arn lets you inspect target health in the EC2 console to debug unhealthy tasks or failed deployments
• Monitoring — the listener_arn and ALB DNS name help you locate CloudWatch metrics and access logs for the Express-managed load balancer
• Integration — if you need to reference the ALB or target group in other Terraform resources (WAF associations, Route 53 aliases), the ingress_paths output provides the required ARNs
• Network validation — confirming the ALB DNS name resolves and returns HTTP responses verifies that your VPC VPC
  Virtual Private Cloud — an isolated virtual network within AWS where resources are deployed. , subnets, and security groups are correctly configured for Express Mode

Note

You do not define ALB, listener, or target group resources in your Terraform code when using Express Mode. ECS provisions and manages them through the Infrastructure Role. The ingress_paths output gives you read-only access to their identifiers.
