Lab A — Offline admission

Before this: Install the toolchain pinned gator and confirmed Lab prerequisites.

This lab proves the spine claim it owes: policy passes before any cluster exists. Everything below runs on your laptop with no cluster credentials and no live webhook. Work in a clone of jajera/kiro-eks-argocd-migration.

The chain: one policy, four artifacts

Every rule in the factory is proven by the same four-step chain before it reaches a cluster. Walking httpsonly end to end shows what each artifact contributes:

— the rule itself.
— binds the rule to a match scope.
— named cases with expected pass/fail outcomes.
gator verify — runs the suite offline and reports PASS or a violation message.

Four-step offline policy chain: ConstraintTemplate, Constraint, Suite with pass and fail cases, then gator verify PASS — Template, constraint, suite, then gator verify — one chain reused by every policy.

1. ConstraintTemplate — the rule

Source: infrastructure/gatekeeper/constraint-templates/httpsonly.yaml

apiVersion: templates.gatekeeper.sh/v1
kind: ConstraintTemplate
metadata:
  name: k8shttpsonly
# ...
  targets:
    - target: admission.k8s.gatekeeper.sh
      rego: |
        package k8shttpsonly

        violation[{"msg": msg}] {
          input.review.object.kind == "Ingress"
          regex.match("^(extensions|networking.k8s.io)/", input.review.object.apiVersion)
          ingress := input.review.object
          not https_complete(ingress)
          not tls_is_optional
          msg := sprintf("Ingress should be https. tls configuration and allow-http=false annotation are required for %v", [ingress.metadata.name])
        }
# ...
        https_complete(ingress) = true {
          ingress.spec["tls"]
          count(ingress.spec.tls) > 0
          ingress.metadata.annotations["kubernetes.io/ingress.allow-http"] == "false"
        }

The Rego violation rule is the actual check: an fails when it lacks both a tls block and the kubernetes.io/ingress.allow-http: "false" annotation. This template defines the rule but binds to nothing yet — it is reusable across any number of constraints.

2. Constraint — the binding

Source: infrastructure/gatekeeper/constraints/httpsonly/constraint.yaml

apiVersion: constraints.gatekeeper.sh/v1beta1
kind: K8sHttpsOnly
metadata:
  labels:
    owner: platform
  name: ingress-https-only
spec:
  enforcementAction: dryrun
  match:
    kinds:
      - apiGroups: ["extensions", "networking.k8s.io"]
        kinds: ["Ingress"]

The Constraint is what actually runs. It names the template (K8sHttpsOnly, from metadata.name: k8shttpsonly in the template) and scopes it: only Ingress objects in the extensions and networking.k8s.io API groups are reviewed. enforcementAction: dryrun means this constraint currently logs violations rather than blocking admission — a live-cluster detail, not something cares about offline.

3. Test suite — the test cases

Source: infrastructure/gatekeeper/tests/httpsonly/suite.yaml

kind: Suite
apiVersion: test.gatekeeper.sh/v1alpha1
tests:
  - name: ingress-https-only
    template: ../../constraint-templates/httpsonly.yaml
    constraint: ../../constraints/httpsonly/constraint.yaml
    cases:
      - name: ingress-with-tls
        object: pass.yaml
        assertions:
          - violations: "no"
      - name: ingress-without-tls
        object: fail.yaml
        assertions:
          - violations: "yes"

A suite wires one template and one constraint together, then runs named cases against them. Each case points at an object file and asserts how many violations gator should find: pass.yaml should produce violations: "no", fail.yaml should produce violations: "yes". gator verify fails the whole suite if either assertion does not hold.

4. The failing case

Source: infrastructure/gatekeeper/tests/httpsonly/fail.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: test-ingress
  namespace: my-app
spec:
  rules:
    - host: example.com
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              service:
                name: my-svc
                port:
                  number: 80

This Ingress has no tls block and no allow-http annotation, so it fails both conditions in https_complete. The expected result of the ingress-without-tls case is one violation with this message, built by the Rego sprintf call:

Ingress should be https. tls configuration and allow-http=false annotation are required for test-ingress

That block is an expected result, not a captured terminal session — no failing run exists in the walkthrough recording, because CI only records the passing suite.

Reading a violation message

Every gator violation has three parts, and they show up in that sprintf output above:

Constraint kind — K8sHttpsOnly, from the template’s metadata.name field, tells you which rule fired.
Reviewed object identity — test-ingress, interpolated into the message, tells you which object failed.
Message string — the human-readable explanation the Rego author wrote, here naming the two missing pieces (tls configuration and allow-http=false annotation).

When gator verify reports a failure, these three parts are what you read to find the fix.

Run the full offline suite

The httpsonly chain above is one of fourteen constraints. The remaining policies live under infrastructure/gatekeeper/constraints/ and infrastructure/gatekeeper/tests/, each following the same template → constraint → suite shape.

Confirm pwd is inside kiro-eks-argocd-migration and gator version prints 3.22.0.
Run gator verify against the full tests tree so all fourteen suites execute.
Build both policy overlays with kustomize so the bundle that Argo would sync still renders.
Confirm every suite reports ok and the run ends in PASS.

gator verify infrastructure/gatekeeper/tests/...
kustomize build policies/overlays/dev-eks-1 >/dev/null
kustomize build policies/overlays/prod-eks-1 >/dev/null

Expect all suites ok and a final PASS.

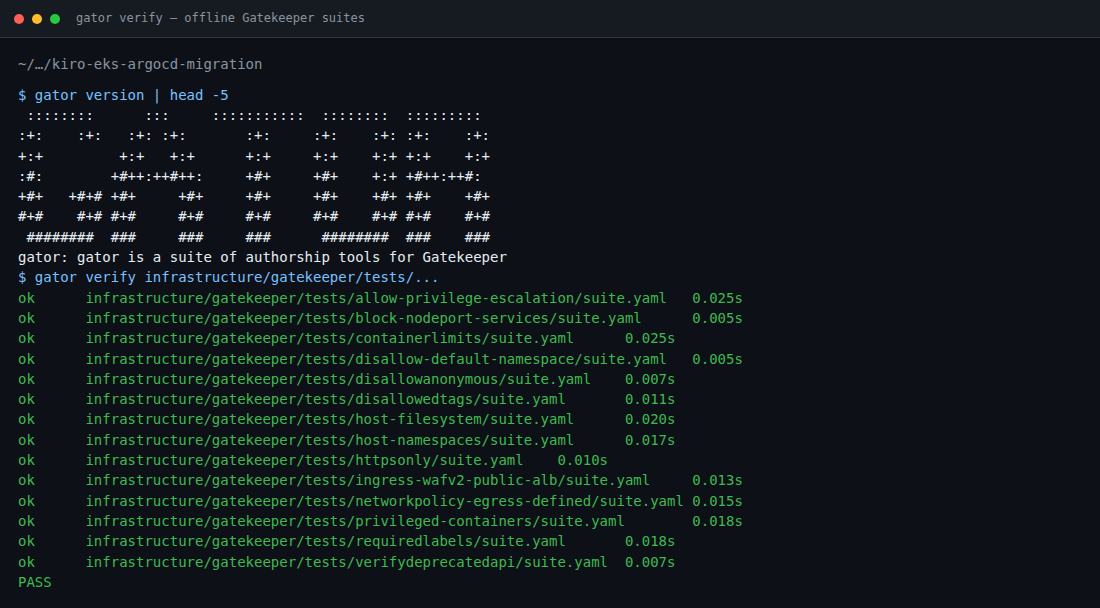

Terminal output of gator verify with all constraint test suites passing — gator verify runs the full policy suite offline before any cluster exists.

This lab only proves the first clause of the factory’s contract — skills generate → hooks enforce → humans approve. Passing gator verify here means the policy layer is sound; it does not yet show that a thin prompt can hit these constraints automatically. Lab B picks that up next.

Tradeoff

Choice: offline admission testing with . Alternative: wait for a live cluster webhook. Reason: gator catches constraint regressions in CI and on the laptop without cluster credentials, so Lab A stays reproducible for every reader.

If gator verify fails in a way that looks like a broken install rather than a real policy violation, check Known scars: gator version skew — that mismatch is the usual culprit.

Next: What makes prompts safe (Lab B) — the .kiro/ map that makes thin prompts safe.
