Lab C — Kiro onboarding (`add-app`)

Before this: promote-app map closed the Lab B deep dives a thin prompt inherits.

This lab proves the spine claim it owes: a thin prompt produces a compliant dual-overlay app.

Run the thin prompt

Section titled “Run the thin prompt”

Do not hand-write the app. Start from empty apps/ in jajera/kiro-eks-argocd-migration. Use the eks-migration agent. Frames below are full IDE shots from the Lab C recording — not a montage.

Empty apps, thin prompt, factory shape, then PR and Argo CD — Git stays the path.

Paste this thin prompt in Kiro
Amazon's agentic IDE — runs vibe or spec sessions against the factory's `.kiro/` steering, skills, and hooks.:

Add a web-service app named demo-nginx.
Image: public.ecr.aws/nginx/nginx:1.27 (retag into our ECR as demo-nginx).
No Secrets Manager. Egress: DNS + HTTPS as required for probes.
Ingress: yes, hostname demo-nginx.dev.example.com on alb.
Replicas: 2 in both overlays (so PDB minAvailable: 1 is valid).

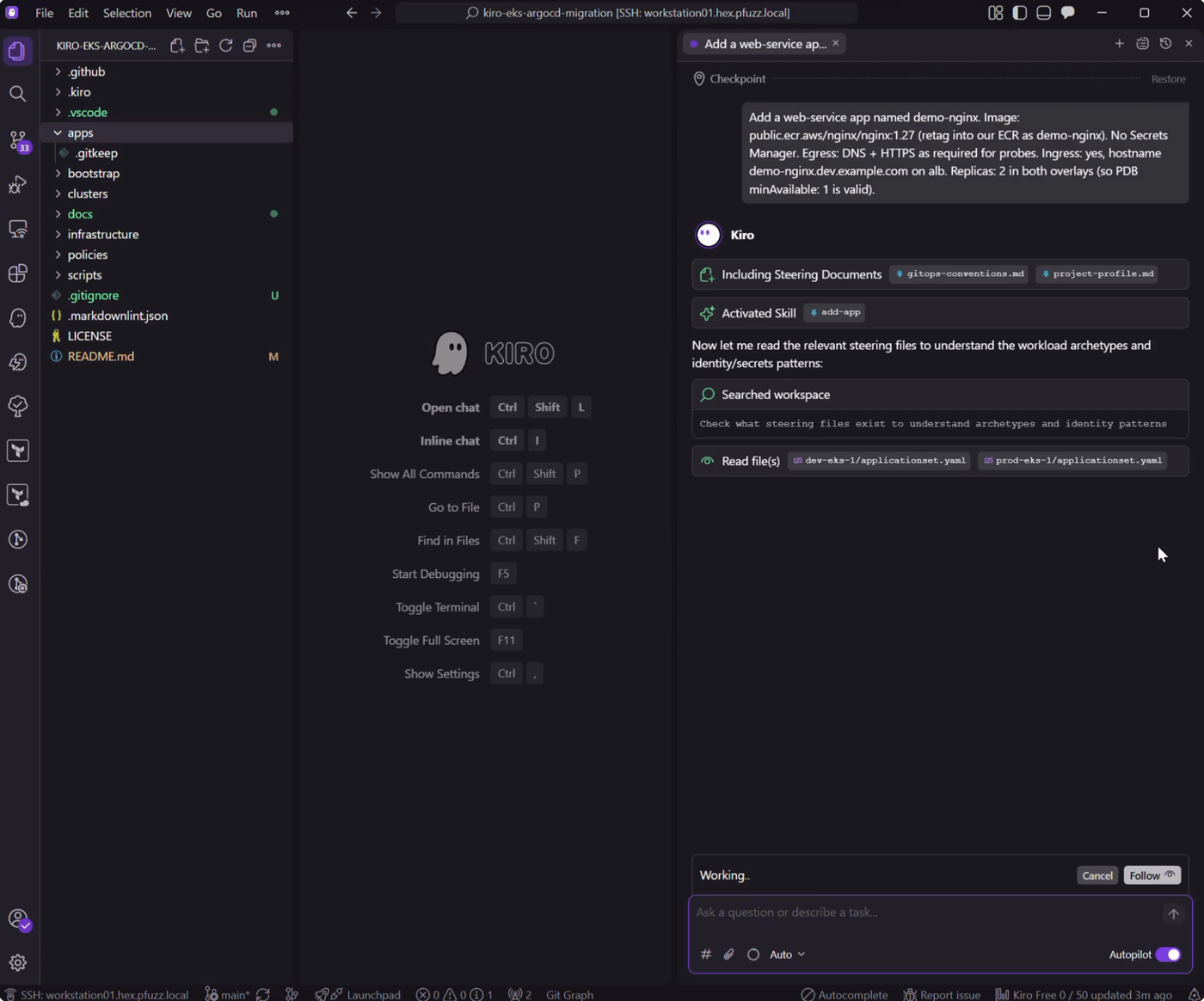

Thin natural-language prompt kicks off add-app under Autopilot.

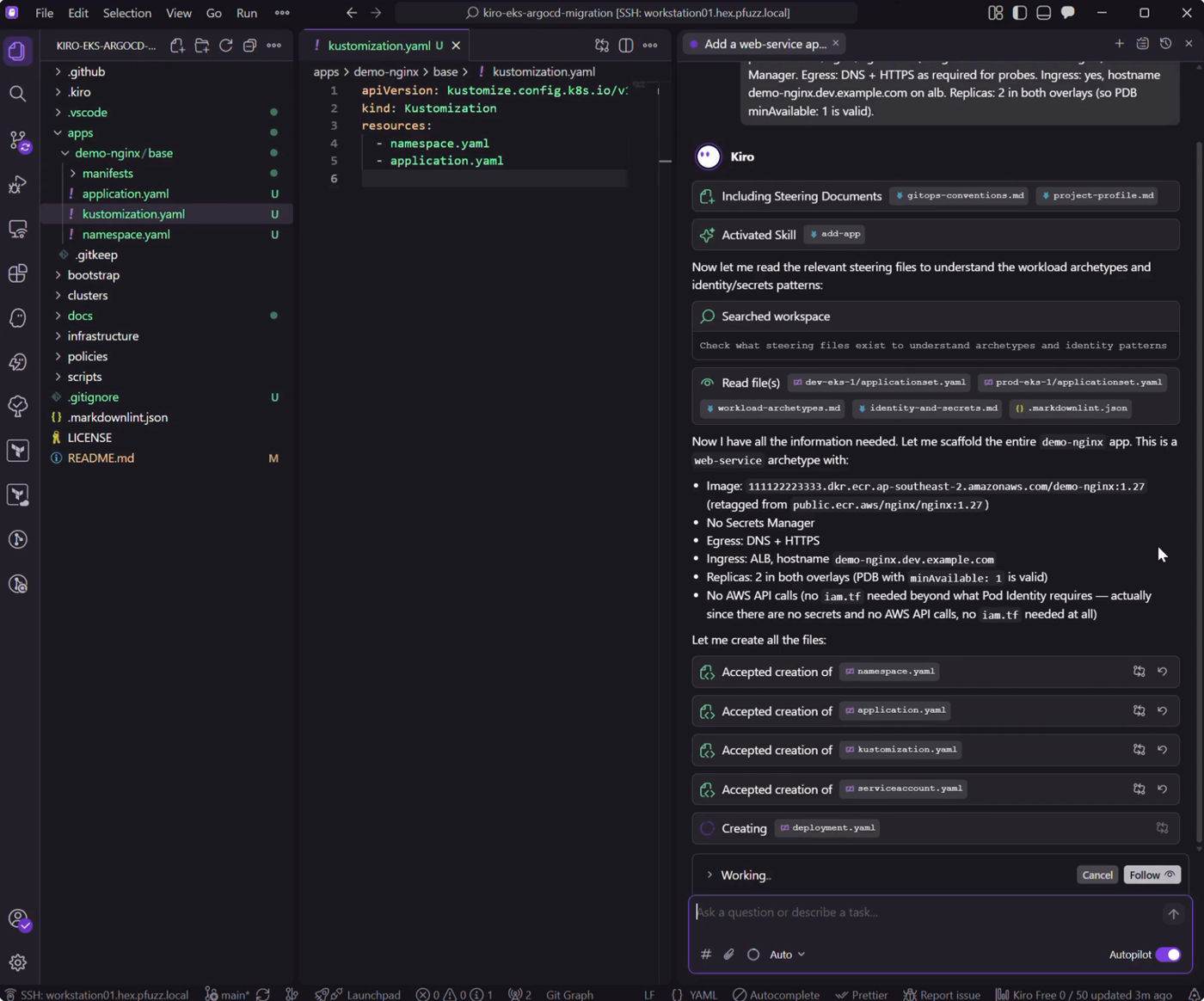

add-app creates apps/demo-nginx with explorer and chat visible.

The Git-only hook allows kustomize
Kubernetes config tool that builds base + overlay trees into deployable manifests without templates. build (read-only) and blocks chat-side kubectl apply. A live ACCESS DENIED was not in this recording.

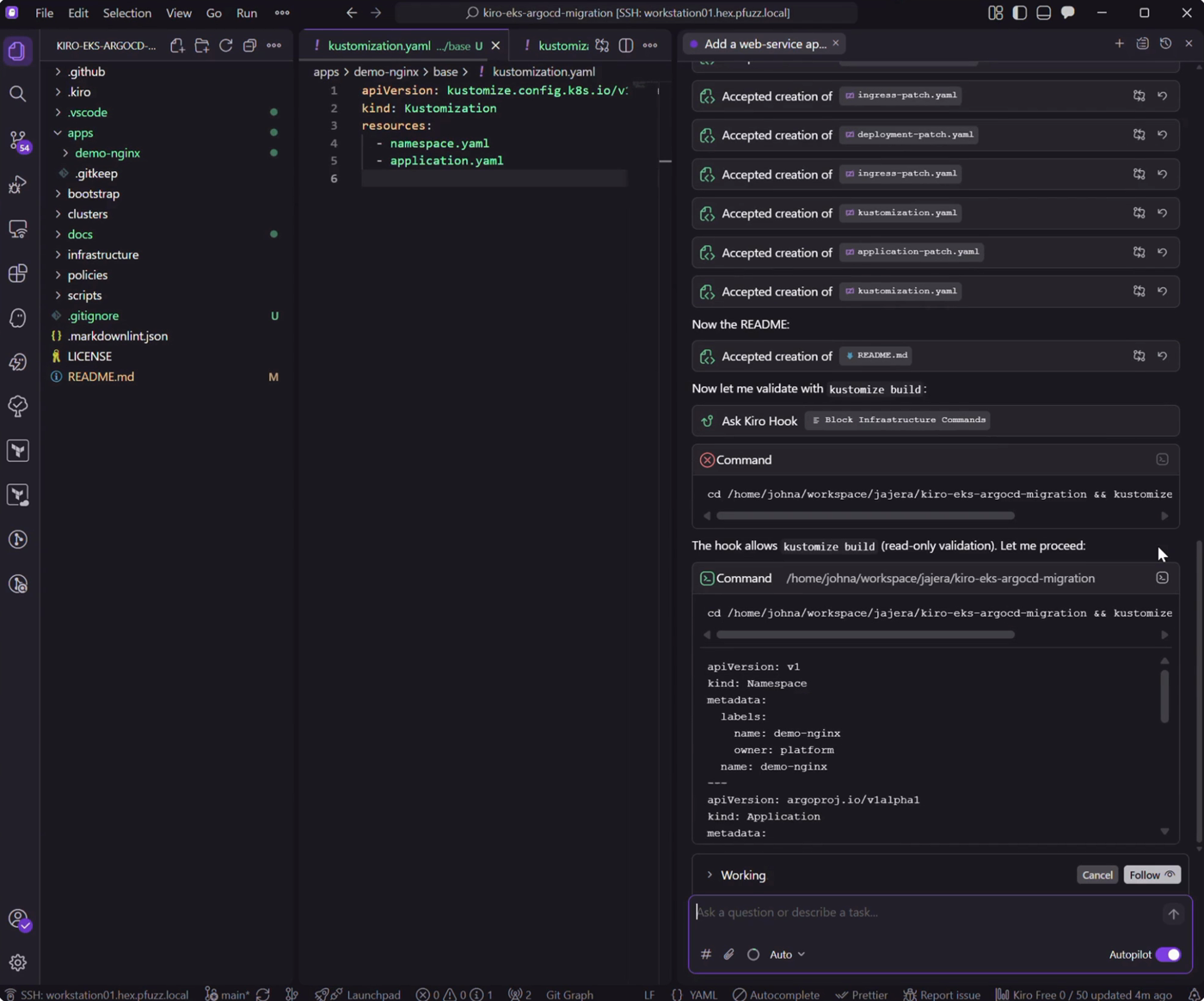

Git-only hook allows kustomize build; cluster apply stays off the path.

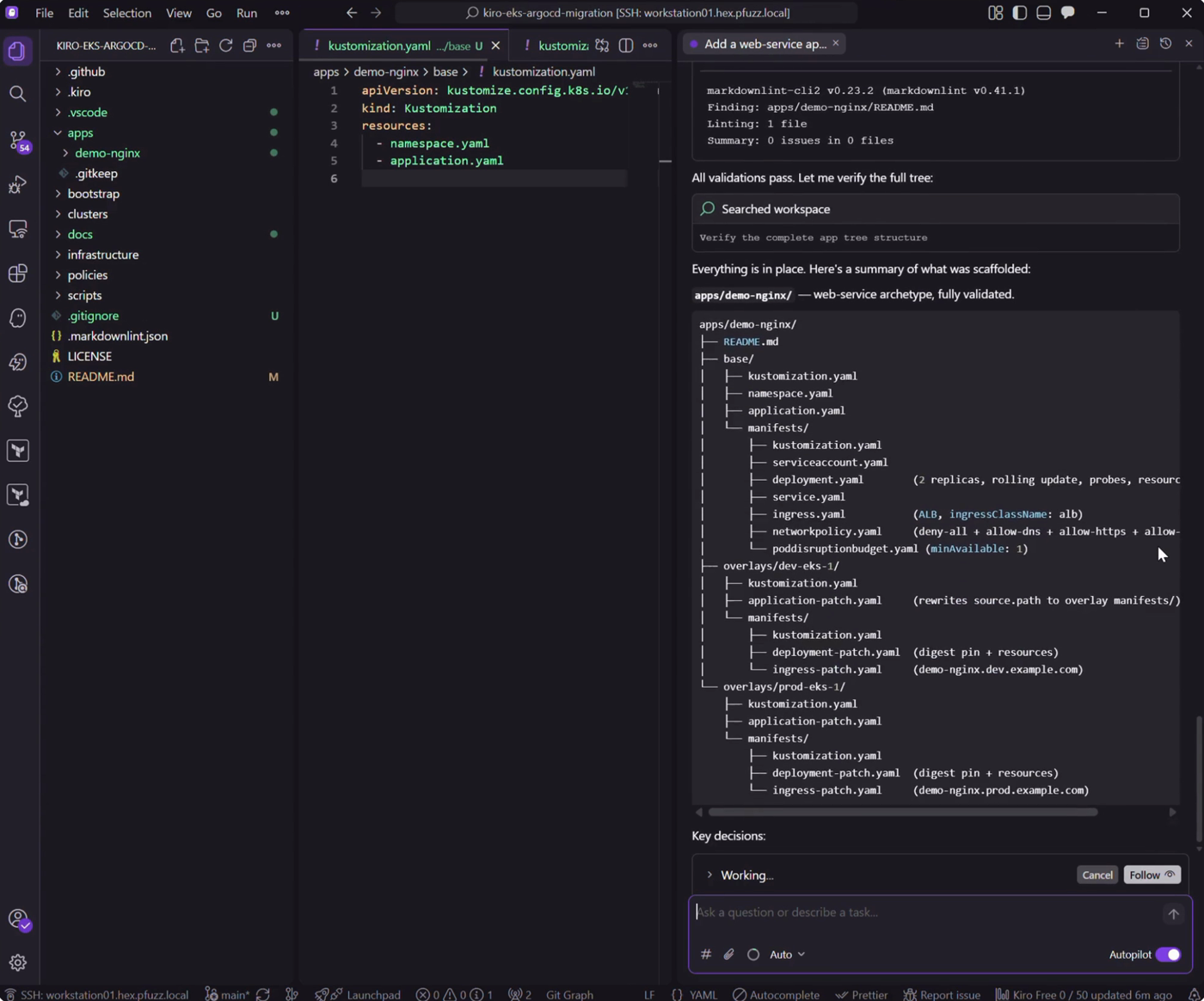

Verify step: Kiro ran kustomize and markdownlint; both passed.

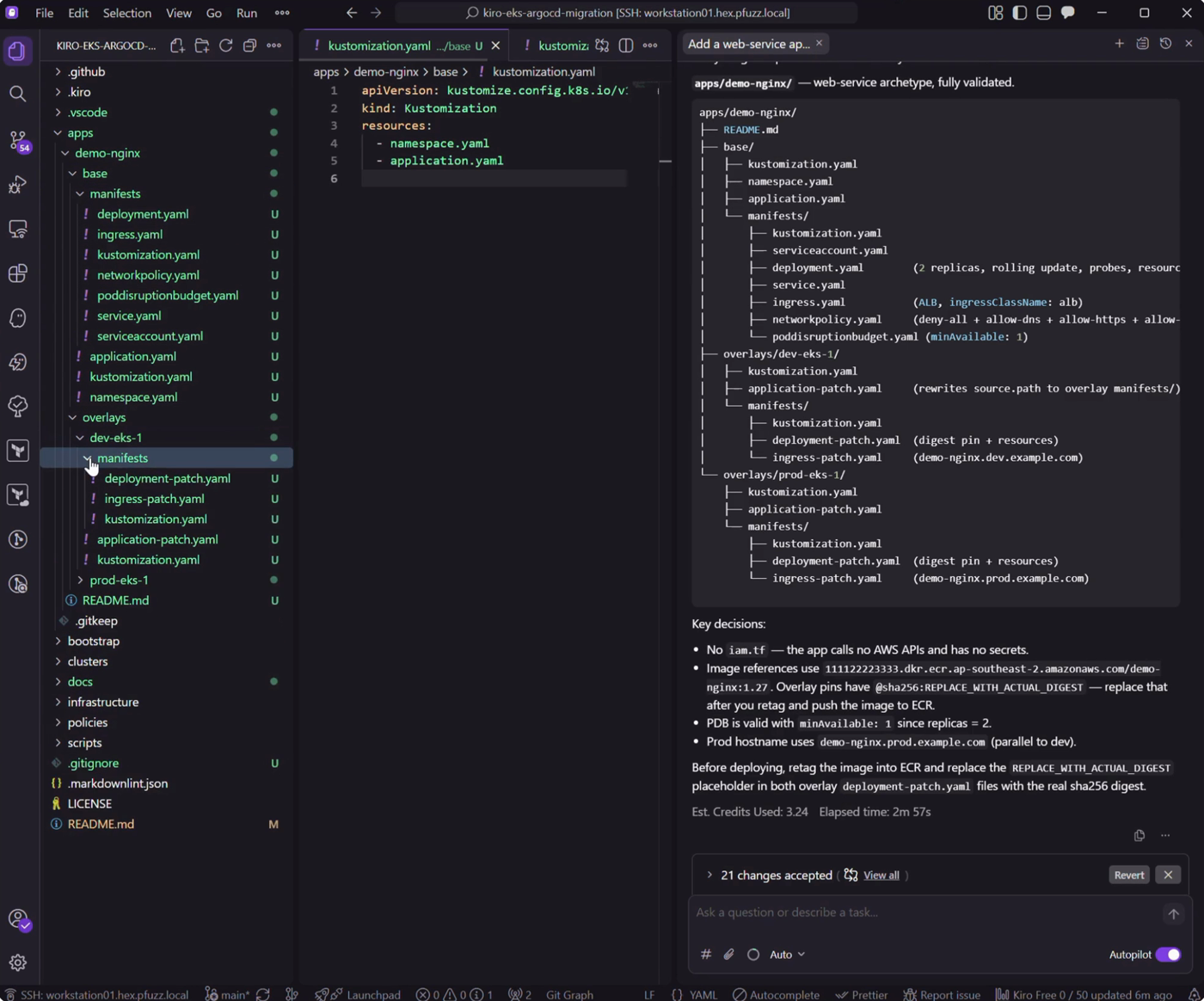

Done: dual overlays for dev-eks-1 and prod-eks-1 are accepted.

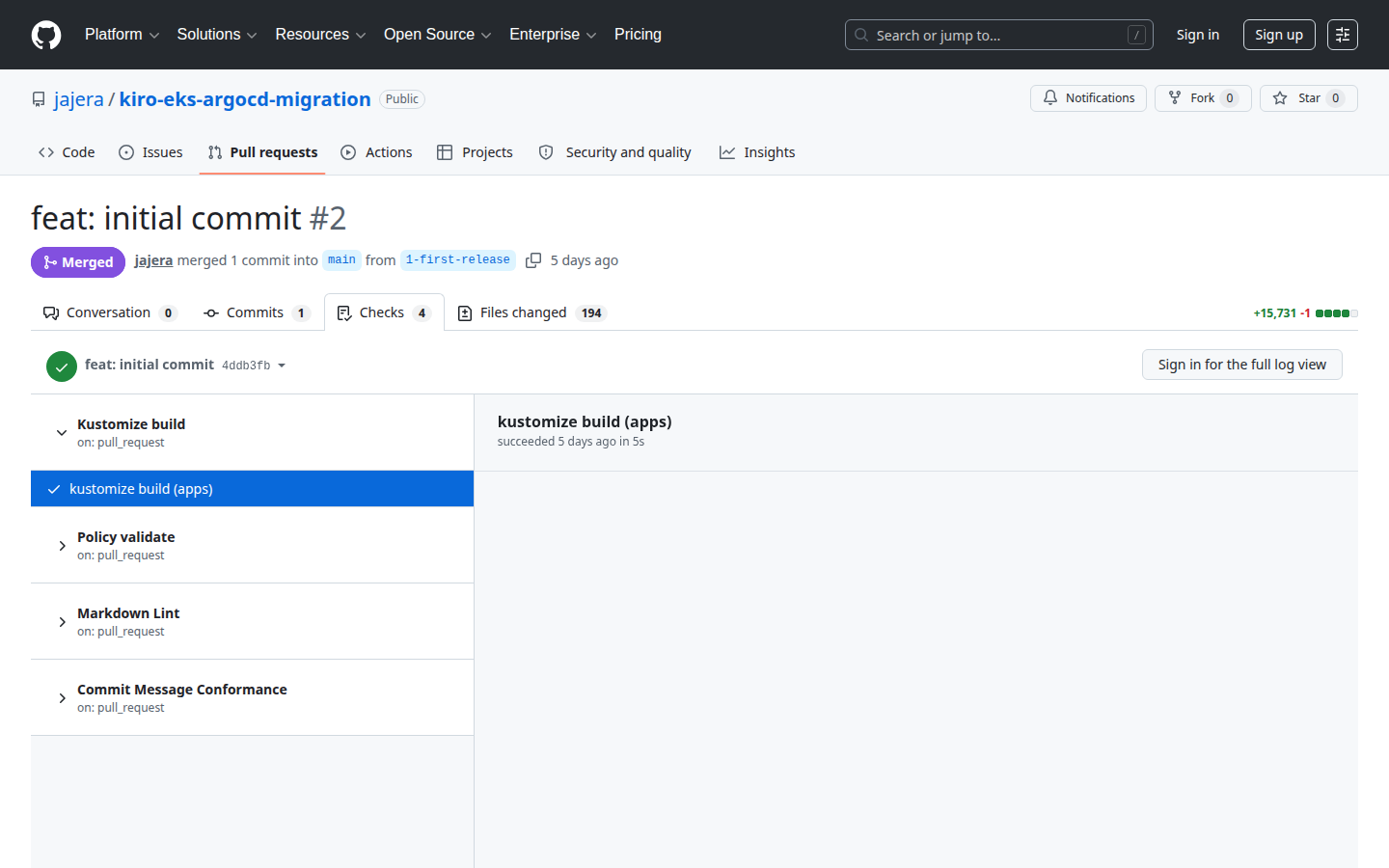

PR checks mirror the same local gates before human merge.

Git-only is prevention; Argo CD is the backstop

Section titled “Git-only is prevention; Argo CD is the backstop”
Shell gate blocks chat apply; Argo CD sync keeps Git authoritative on the cluster.

The shell gate is the first line: see block-infra-commands.kiro.hook. It keeps the agent on Git-only paths (kustomize build, gator verify, local lint) and denies mutating cluster or cloud commands from chat.

That is not the only safety net. This factory is GitOps
Operate the cluster from Git as the source of truth — changes land as PRs, then sync, not as ad-hoc kubectl.: Argo CD
GitOps continuous delivery controller that syncs Kubernetes manifests from Git into the cluster. reconciles the cluster to what is in Git after a human merges. An out-of-band kubectl apply that somehow reached the API would not become the lasting source of truth — the next sync brings the live object back in line with the repo (or surfaces drift for a human to fix). The hook stops the agent from creating that mess; Argo CD is why Git still wins if something else does.

What add-app actually creates

Section titled “What add-app actually creates”

apps/ in jajera/kiro-eks-argocd-migration holds nothing but a .gitkeep until a reader runs this prompt — the demo-nginx tree in the frames above is not checked into the repository, so this page cannot quote it as a system of record. Run the thin prompt yourself against the eks-migration agent to get these files; copying YAML off this page into a repo instead is not a substitute.

The add-app skill scaffolds this tree for a web-service archetype:

File Contents
apps/demo-nginx/base/namespace.yaml Namespace with name/owner labels
apps/demo-nginx/base/application.yaml Argo CD Application using profile defaults
apps/demo-nginx/base/kustomization.yaml Lists the base resources
apps/demo-nginx/base/manifests/deployment.yaml Deployment with probes, resource limits, rolling update strategy
apps/demo-nginx/base/manifests/serviceaccount.yaml ServiceAccount for the workload
apps/demo-nginx/base/manifests/networkpolicy.yaml default-deny-all plus DNS/HTTPS allow rules
apps/demo-nginx/base/manifests/ingress.yaml ALB Ingress for the web-service archetype
apps/demo-nginx/base/manifests/poddisruptionbudget.yaml PDB, only added because replicas >= 2
apps/demo-nginx/overlays/dev-eks-1/kustomization.yaml Overlay resources + patches for dev
apps/demo-nginx/overlays/prod-eks-1/kustomization.yaml Overlay resources + patches for prod
apps/demo-nginx/iam.tf IAM policy + Pod Identity association, skipped here since the prompt calls no AWS APIs
apps/demo-nginx/README.md Required app README with a Mermaid inputs/outputs diagram

See the full scaffold contract in add-app.

The skill’s own validate step is what add-app runs before calling the scaffold done — this is the exact command block the tables above and below are checked against:

Source: .kiro/skills/add-app/SKILL.md lines 107-113

Terminal window
kustomize build apps/<app>/base
for c in dev-eks-1 prod-eks-1; do
  kustomize build apps/<app>/overlays/$c
  kustomize build apps/<app>/overlays/$c/manifests
done
terraform fmt -check apps/<app>
npx --yes markdownlint-cli2 "apps/<app>/README.md"

That block runs in order:

  1. Build the base tree alone, so a base-level error surfaces before either overlay is touched.
  2. Build both overlays and their manifests/ patches, dev then prod, so neither is skipped.
  3. Check Terraform formatting on iam.tf if the app has one.
  4. Lint the required app README.

Checking the output against the archetype contract

Section titled “Checking the output against the archetype contract”

The web-service archetype in the Workload archetypes map names seven things a compliant app must have. Each one traces to exactly one factory layer, not to the prompt:

Contract item Satisfied by Supplying layer
Readiness probe deployment.yaml container probes add-app skill, step 3
Liveness probe deployment.yaml container probes add-app skill, step 3
Ingress present ingress.yaml with the ALB class and hostname steering: workload-archetypes.md
NetworkPolicy present networkpolicy.yaml with default-deny-all plus allows add-app skill, step 3
PDB valid at replicas: 2 poddisruptionbudget.yaml only added because replicas >= 2 hook: validate-app-scaffold
Placeholder image digest Overlay patches pin <app>:<tag>@sha256:<digest> in the project ECR, never the upstream registry add-app skill, step 2
Both overlays present overlays/dev-eks-1/ and overlays/prod-eks-1/, never just one add-app skill, step 4

None of these seven came from the prompt. The prompt named the app, the image, and the hostname — the archetype contract, the file shape, and the PDB validity check all came from steering, the skill, and a hook.

Takeaway

Section titled “Takeaway”

This was vibe coding
Thin natural-language session — short prompt, guardrails do the shaping; Lab C is the vibe case.: short prompt, no hand-authored manifests. Output still matched the platform contract because steering, add-app
Factory skill that scaffolds a dual-overlay app tree from a thin prompt (Lab C)., hooks, and the agent bundle did the heavy lifting. Humans still review before merge — this lab is the closing proof of skills generate → hooks enforce → humans approve. The shell gate keeps apply out of chat; Argo CD sync keeps Git authoritative on the cluster afterward.

Tradeoff

Section titled “Tradeoff”

Choice: thin prompt plus hard guardrails. Alternative: a long prescriptive prompt that restates every factory rule. Reason: the .kiro/ map already encodes overlays, PDB
PodDisruptionBudget — limits voluntary disruptions; the factory scar requires replicas >= 2 when minAvailable is 1., and Git-only shell policy, so repeating them in chat adds noise without safety.

If add-app stops at the PDB step, see Known scars: the PDB scar at replicas 1 — the same rule enforced in the contract-check table above.

Next: Lab D (out of scope) — what the live path looks like after a human merges this app’s PR.
